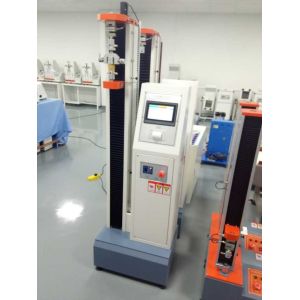

Single Column UTM Tensile Testing Machine Price With Touch Screen
Equipment Overview:
ZL-8003A Microcomputer-Type Economical Material Testing Machine is a new type of material testing machine combining electronic technology and mechanical transmission. It has a wide and accurate loading speed and force measurement range, and has high precision and control for load and displacement measurement and control. sensitivity. The structure is simple, the operation is convenient, and it can be placed directly on the ground of the studio for testing. It is especially suitable for testing instruments used to control product quality on the production line. This series of models is mainly suitable for non-metallic and metallic material tests with a test load of less than 5000N.
Main functions: This machine is suitable for stretching, compression, bending, shearing, Various tests such as peeling, tearing, two-point extension (need to be equipped with an extensometer) are used to determine the quality of the product.
Technical Parameters:
| A. The Maximum Allowable Load Of The Machine | 500KG. |
| B. Load Cell | Optional within 10, 50, 100, 200, 500 KG. (made in the United States) |
| C. Load Measurement Accuracy | Load cell + ZL-2000 display ±0.5% (5%-100% of full scale) |
| D. Unit Switching | Kg, Lb, N |
| E. Resolution | 1/50000 |
| F. Displacement Resolution | 0.001mm |
| G. Power System | AC motor, reducer (Made in Italy) |
| H. Control System | Test speed 50~300 mm/min stepless speed regulation and 5 gears constant speed(50, 100, 200, 250, 300) or customer specified. |
| I. Data Sampling Frequency | 200 times/sec |
| J.. Connecting Plate Stroke | 1200 mm. |
| K. Safety Device | overload ,emergency stop device, upper and lower travel limit device, leakage protection device. |
| L. The machine itself configures the printing function. | |
| M. It can store the results of 10 test reference points, automatically calculate the average value, automatically grab the maximum value, and the force value when it breaks. | |
| N. Display Mode | Dark blue LCD screen with English display, thin-film touch keys, with the following functions: ①.Single test, manual 10-point statistics, and automatically calculate the average value, breaking value; ②. Multi-unit automatic switching such as kgf, Lbf, N; ③. Free point selection function; ④. With multi-function correction function; ⑤. Automatic printing function; ⑥.Using 24-bit AD acquisition, resolution 1/20000; ⑦.The number of decimal places can be arbitrarily selected from 0 to 4; ⑧.Power-on password protection function, which can effectively prevent non-operating personnel from starting the machine; ⑨.The break point ratio is from 0 to 99%, and the user can set the appropriate break stop time according to different materials. ⑩.The overload protection function can be set to effectively prevent the machine from overloading; |
| O. Power Supply | AC 220V single phase. |
| P. Power | 400W |
| Q. Machine Size | About 600x450x1800mm(Length*Width*Height). |
| R. Weight | 70kg |
